I thought I would start a new thread on the restoration.

I like to do videos of my updates, I can explain things better. I will do a video in the next couple of days on the work so far.

But I have removed the hood, the wiring harness, the gastank, the battery, and the deck so far.

Deck looks good, it even has new blades, had some problems removing it. The pins were different sizes, and the 16 penny nail had to been straightened first to remove it. the deck does spin, I will work it later.

#2 Amigatec OFFLINE

Amigatec

    Collector of Rusty Junk

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 5899
  • 2,023 Thanks
  • 3,172 posts
  • Location: Haskell Oklahoma

Posted November 23, 2011 - 09:06 PM

Found the correct wiring diagram for the MF10 with S/G.

Posted Image

#3 Amigatec OFFLINE

Amigatec

    Collector of Rusty Junk

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 5899
  • 2,023 Thanks
  • 3,172 posts
  • Location: Haskell Oklahoma

Posted November 24, 2011 - 07:39 PM

Update


http://www.youtube.com/watch?v=LKpHWE8mv2I


Edited by MH81, November 24, 2011 - 11:01 PM.
Added direct link


#4 markdombroski OFFLINE

markdombroski

    Tractorholic

  • Senior Member
  • -GTt Supporter-
  • Member No: 6157
  • 196 Thanks
  • 432 posts
  • Location: Seattle, WA

Posted November 25, 2011 - 09:56 AM

Cool video log. Looks like a fun project!

#5 mjodrey OFFLINE

mjodrey

    Accumulator

  • Senior Member
  • Contributor
  • Member No: 92
  • 2,343 Thanks
  • 13,481 posts
  • Location: Upper Granville, Nova Scotia, Canada

Posted November 25, 2011 - 03:16 PM

Cool video log. Looks like a fun project!


:ditto:

#6 JDBrian OFFLINE

JDBrian

    Super Moderator

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2507
  • 9,574 Thanks
  • 14,136 posts
  • Location: Hubley, Nova Scotia - Canada

Posted November 25, 2011 - 03:35 PM

Thanks for the update video. I always find it kind of interesting to look at all the issues that have been dealt with in the past by PO's, like the nails in your linkages. I guess many people consider these old GTs as worthless and won't spend even a dollar on fixing them.

#7 MH81 ONLINE

MH81

    Proud to be Deplorable

  • Staff Admin
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 802
  • 27,317 Thanks
  • 28,635 posts
  • Location: N. W. PA

Posted November 25, 2011 - 05:27 PM

I always find it kind of interesting to look at all the issues that have been dealt with in the past by PO's, like the nails in your linkages.


Yeah, there have been items in the past that Dad and I saved, that we left some of those modifications in place. "Character" is how we refer to them:D

One of my favorite reuse items is an old clevis that Dad has. You can still see the "teeth" in it as it used to be a file and has been heated and hammered into a U. Making Do Without was how you sometimes had to do it.

#8 Amigatec OFFLINE

Amigatec

    Collector of Rusty Junk

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 5899
  • 2,023 Thanks
  • 3,172 posts
  • Location: Haskell Oklahoma

Posted November 25, 2011 - 06:06 PM

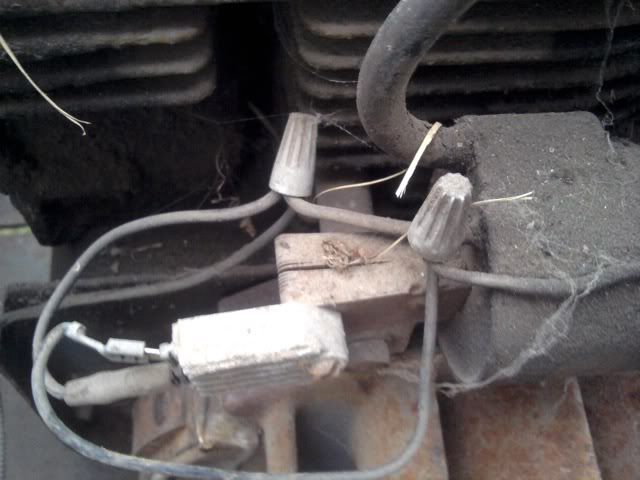

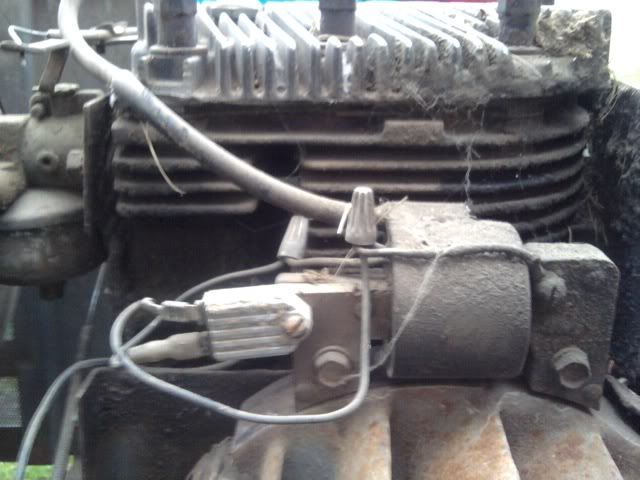

OK here is the coil setup. It has the older point style coil with a small box.

Posted Image

Posted Image

Posted Image

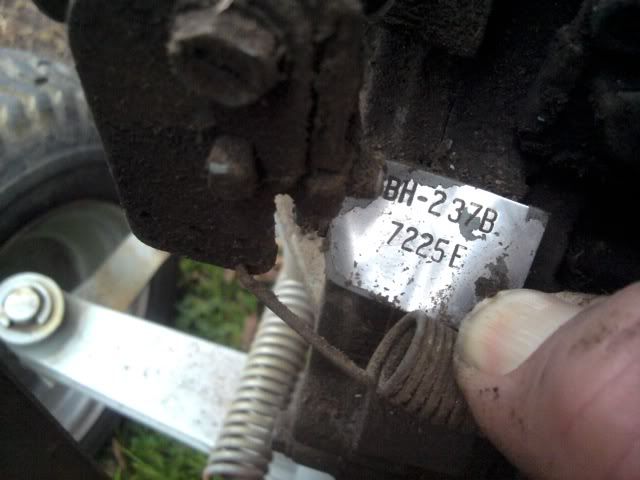

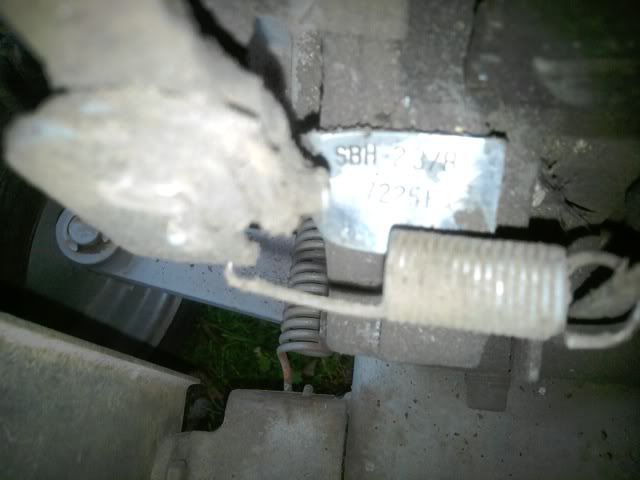

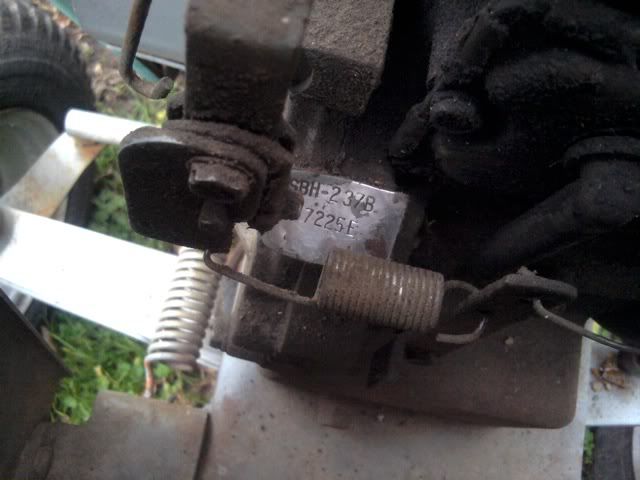

And it also has this number tag on it.

Posted Image

Posted Image

Posted Image

#9 DH1 ONLINE

DH1

    Electric Tractors

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 62
  • 4,587 Thanks
  • 5,295 posts
  • Location: Markham Ontario Canada

Posted November 25, 2011 - 07:21 PM

I think what you have there is a replacement engine judging by the coil on it, that style was not used in production engines but was used on rep. engines. Back then you could get rep. engines or short blocks.
The rep. engine would of come with the coil that you have and under the flywheel you should find a magneto coil as well.
The small box is aftermarket points eliminator, why it's there???
The SBH tag is a short block replacement tag, it is quite possible that the original engine was replaced with a replacement engine then when that failed a short block was put in which would of had the coil, magneto, flywheel carb, swapped over.

SBH-237B indicates that it is a 12hp HH engine.

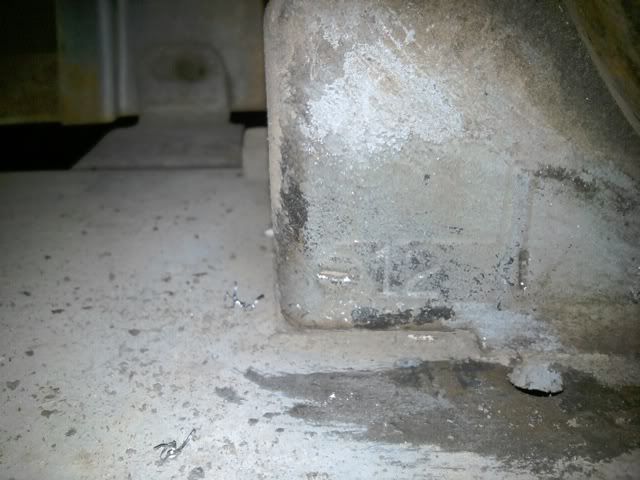

If you look at the flywheel side of the block, lower left hand corner, you will see a #
10 for HH100, 10hp
12 for HH120, 12hp

What does yours say?

Edited by DH1, November 25, 2011 - 07:49 PM.

  • Amigatec said thank you

#10 Amigatec OFFLINE

Amigatec

    Collector of Rusty Junk

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 5899
  • 2,023 Thanks
  • 3,172 posts
  • Location: Haskell Oklahoma

Posted November 25, 2011 - 07:50 PM

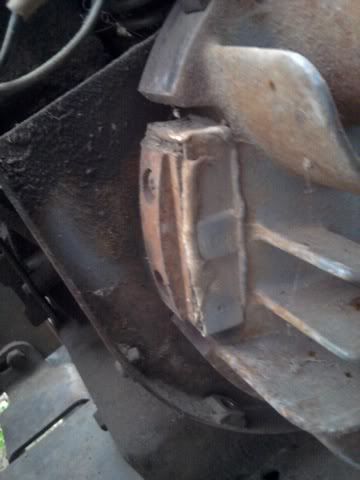

Well Well Well looks like I have a 12HP engine.

Posted Image

#11 Amigatec OFFLINE

Amigatec

    Collector of Rusty Junk

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 5899
  • 2,023 Thanks
  • 3,172 posts
  • Location: Haskell Oklahoma

Posted November 25, 2011 - 07:52 PM

OK now will a 10 HP carb be the same or do I need a 12 HP carb?

#12 DH1 ONLINE

DH1

    Electric Tractors

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 62
  • 4,587 Thanks
  • 5,295 posts
  • Location: Markham Ontario Canada

Posted November 25, 2011 - 07:58 PM

10, 12 carbs interchangeable, maybe the 12 carb has more airflow???
Either one will work.
  • Amigatec said thank you

#13 Amigatec OFFLINE

Amigatec

    Collector of Rusty Junk

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 5899
  • 2,023 Thanks
  • 3,172 posts
  • Location: Haskell Oklahoma

Posted November 25, 2011 - 08:01 PM

Thanks!!!

I think I have a line on a used carb local.

#14 Amigatec OFFLINE

Amigatec

    Collector of Rusty Junk

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 5899
  • 2,023 Thanks
  • 3,172 posts
  • Location: Haskell Oklahoma

Posted November 25, 2011 - 08:03 PM

Also the head has a few fins missing, I was going to replace the head, will a 10 HP fit?

#15 DH1 ONLINE

DH1

    Electric Tractors

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 62
  • 4,587 Thanks
  • 5,295 posts
  • Location: Markham Ontario Canada

Posted November 25, 2011 - 08:10 PM

Also the head has a few fins missing, I was going to replace the head, will a 10 HP fit?


I believe the 10 and 12 heads are the same but the HEAD GASKET is different.
