3 point geometry question (CAT 0)


  • Please log in to reply
21 replies to this topic

#1 wvbuzzmaster OFFLINE

wvbuzzmaster

    Squeaky Wheel

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 1792
  • 4,492 Thanks
  • 7,341 posts
  • Location: West Virginia

Posted October 22, 2011 - 11:46 PM

I have a question for those with Category 0 three point hitches. I am going to make a sleeve hitch to CAT 0 adapter for the Caterpillar and will have a solid top link most likely. I plan to only lift/lower a homemade tiller, and trailer toter setup on the 3 point. For plowing and discing I will use my sleeve hitch stuff, so I need zero adjustment in my top link. The question is, what is the measurement of the top link location from the pivot of the bottom pins on the CAT 0 implements??

#2 engine2 OFFLINE

engine2

    New Member

  • New Member
  • Member No: 6977
  • 5 Thanks
  • 1 posts
  • Location: Frozen Tundra of Minnesota

Posted October 23, 2011 - 04:47 AM

3 point hitch.jpg
Should be 18" the same as Cat 1
  • DH1, wvbuzzmaster, Rozwell Ranch and 2 others have said thanks

#3 JDBrian OFFLINE

JDBrian

    Super Moderator

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2507
  • 9,574 Thanks
  • 14,136 posts
  • Location: Hubley, Nova Scotia - Canada

Posted October 23, 2011 - 07:23 AM

Just one caution on the diagram above. IME even some cat 1 implements are not fully 18" high. The compact implements built for small tractors with limited cat 1 for instance. I just measured a worksaver 24" cat 1 dirt scoop that I used on my jd x475, which was a limited cat 1. It is about 14" high from the top pin to the lift pins. Perhaps someone with a cat 0 implement could measure it as well. 18" just sounds too high to me.
  • wvbuzzmaster said thank you

#4 KennyP ONLINE

KennyP

    FORDoholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2253
  • 28,394 Thanks
  • 39,654 posts
  • Location: Collinsville, Oklahoma

Posted October 23, 2011 - 09:18 AM

Brian, I was thinking the same thing. The top link on a GT isn't usually that long nor positioned very high above the lower arms. I may have something on a Cat 0 to sleeve hitch adapter. I'll look around and post what I find. Something to do.
  • wvbuzzmaster said thank you

#5 wvbuzzmaster OFFLINE

wvbuzzmaster

    Squeaky Wheel

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 1792
  • 4,492 Thanks
  • 7,341 posts
  • Location: West Virginia

Posted October 23, 2011 - 09:21 AM

Those dimensions are great, it gets me a close enough set of numbers to determine if my plan will even work. I am really just trying to get it to a standard in case I want to buy new 3 point stuff that I don't build myself.

#6 KennyP ONLINE

KennyP

    FORDoholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2253
  • 28,394 Thanks
  • 39,654 posts
  • Location: Collinsville, Oklahoma

Posted October 23, 2011 - 09:27 AM

I found this. It may be of some help.

I have a few more things stashed away on this puter, but this is the first I found with dimensions.
  • Alc, wvbuzzmaster, Rozwell Ranch and 1 other said thanks

#7 wvbuzzmaster OFFLINE

wvbuzzmaster

    Squeaky Wheel

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 1792
  • 4,492 Thanks
  • 7,341 posts
  • Location: West Virginia

Posted October 23, 2011 - 10:15 AM

Anything can help Kenny, and you can't have too much information, well, ok, mabey with some things LOL.

#8 cityboy2977 OFFLINE

cityboy2977

    ordinary average guy

  • Senior Member
  • Member No: 6650
  • 117 Thanks
  • 179 posts
  • Location: Mancelona, Michigan

Posted October 24, 2011 - 08:25 PM

I found this. It may be of some help.
[ATTACH=CONFIG]23575[/ATTACH]

I have a few more things stashed away on this puter, but this is the first I found with dimensions.

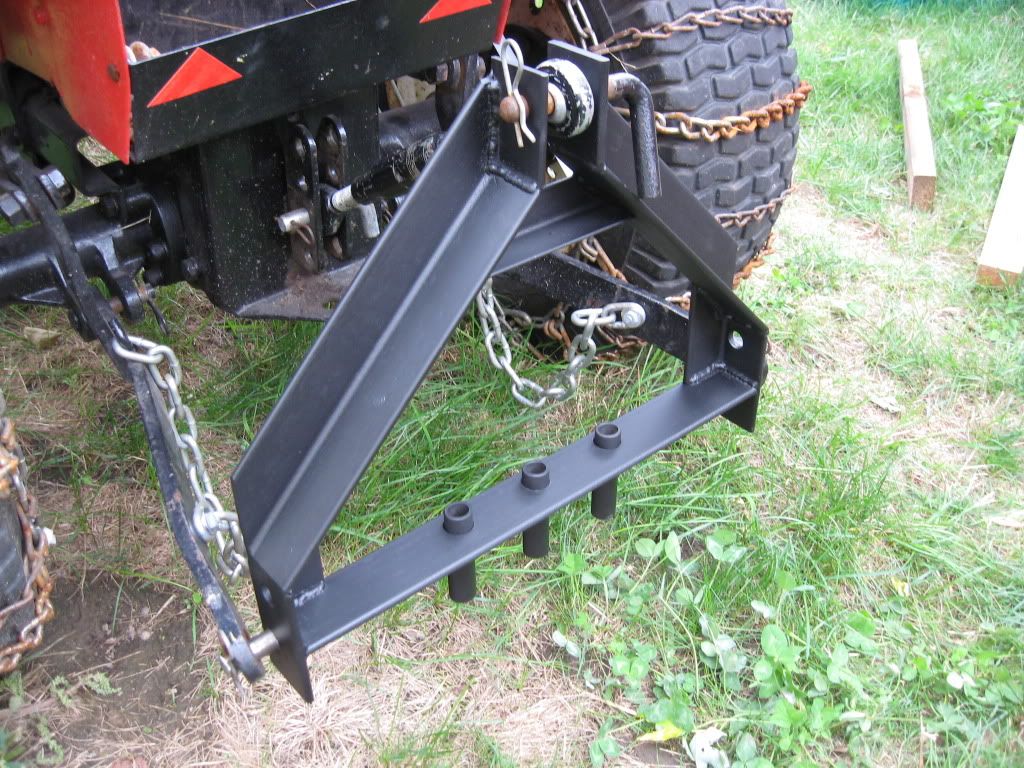

these are the dimensions i use for 3pt's i have made.
Posted Image
  • wvbuzzmaster, KennyP and BiGDaWgZ have said thanks

#9 KennyP ONLINE

KennyP

    FORDoholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2253
  • 28,394 Thanks
  • 39,654 posts
  • Location: Collinsville, Oklahoma

Posted October 25, 2011 - 05:47 AM

Here's another with dimensions.

Not sure what else I may have.

#10 IamSherwood OFFLINE

IamSherwood

    Elf guardian

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 2066
  • 8,379 Thanks
  • 7,696 posts
  • Location: Northern Ontario

Posted October 25, 2011 - 06:49 AM

This might be helpfull. Hope it's clear enough. I think I posted this in manuals, but I can't find it.

Attached Thumbnails

  • cat0-pg1.jpg
  • cat0-pg2.jpg
  • cat0-pg3.jpg


#11 KennyP ONLINE

KennyP

    FORDoholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2253
  • 28,394 Thanks
  • 39,654 posts
  • Location: Collinsville, Oklahoma

Posted October 25, 2011 - 07:04 AM

Will, I have that also. Darned hard to figure anything out for me, must be the metric measurements.:bigrofl: Never been able to get those going right in my mind.

#12 IamSherwood OFFLINE

IamSherwood

    Elf guardian

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 2066
  • 8,379 Thanks
  • 7,696 posts
  • Location: Northern Ontario

Posted October 25, 2011 - 07:25 AM

Yes Kenny, if you're not using metric all the time, it's a stumper.
Back to the original question, I make out the mast height to be 12" max from that info.

#13 IamSherwood OFFLINE

IamSherwood

    Elf guardian

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 2066
  • 8,379 Thanks
  • 7,696 posts
  • Location: Northern Ontario

Posted October 25, 2011 - 07:31 AM

Here is the link to the pdf.
Not sure why I posted it in MF implements, but maybe someone could move it to a better place.

Cat 0 3pt hitch specs - Manuals - Garden Tractor Talk - Forums
  • KennyP said thank you

#14 KennyP ONLINE

KennyP

    FORDoholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2253
  • 28,394 Thanks
  • 39,654 posts
  • Location: Collinsville, Oklahoma

Posted October 25, 2011 - 07:52 AM

Will, where I get confused is what number you use to convert metric to inches. Most things have both inches/metrics shown. Guess I need to bookmark a site to do the conversion, but that doesn't help when I'm at the shop and the smart machine is in the house.

#15 Gibby OFFLINE

Gibby

    Tractorholic

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 4886
  • 96 Thanks
  • 360 posts
  • Location: Butler County, Pa

Posted October 25, 2011 - 11:18 AM

Will, where I get confused is what number you use to convert metric to inches. Most things have both inches/metrics shown. Guess I need to bookmark a site to do the conversion, but that doesn't help when I'm at the shop and the smart machine is in the house.


Most cell phones have an SAE to metric convertion feature in the tools menu.
