Posted September 22, 2011 - 06:18 PM

The pto shaft should be another fun project, all this is going on my older LGT125 so I will be sure it works perfect. Now all I need to do is find a Ford tiller. I would love to find another bottom plow so I can make a double bottom unit .

#77 skyrydr2 ONLINE

skyrydr2

    Tractorholic

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 5032
  • 3,406 Thanks
  • 3,156 posts
  • Location: Gardner, Massachusetts!

Posted September 23, 2011 - 02:24 PM

Made linkage that goes from the aux.lift point to the 3point hitch, and roughed out the lower lift arms. Had to make a for to be able to bend them nicely in my hydraulic press( wood splitter) stay tuned for pics of it and all the parts mounted to the tractor. But it is dependant on the weather, supposed to rain all weekend.....

#78 skyrydr2 ONLINE

skyrydr2

    Tractorholic

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 5032
  • 3,406 Thanks
  • 3,156 posts
  • Location: Gardner, Massachusetts!

Posted September 24, 2011 - 04:56 PM

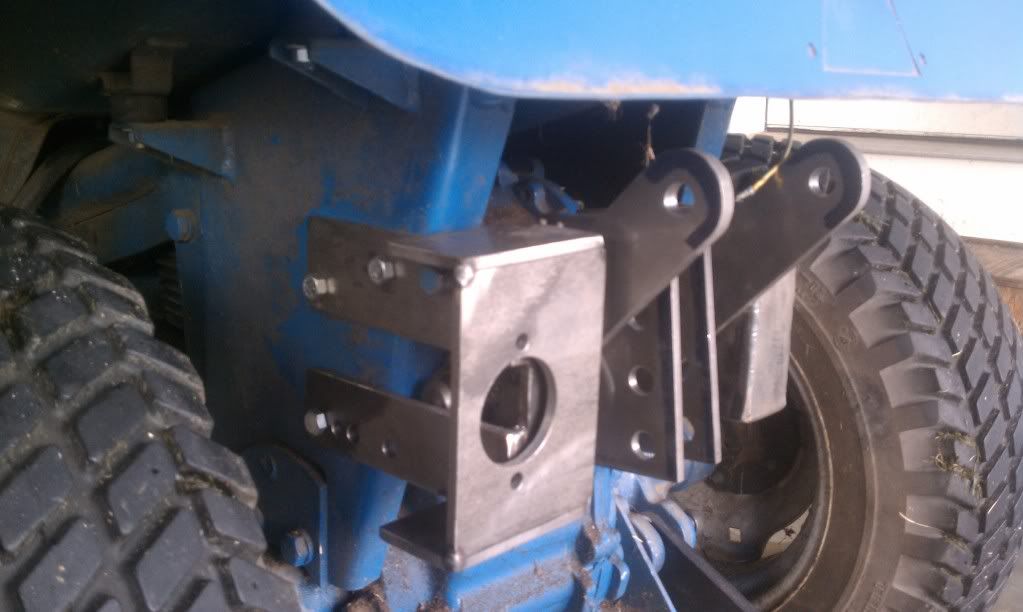

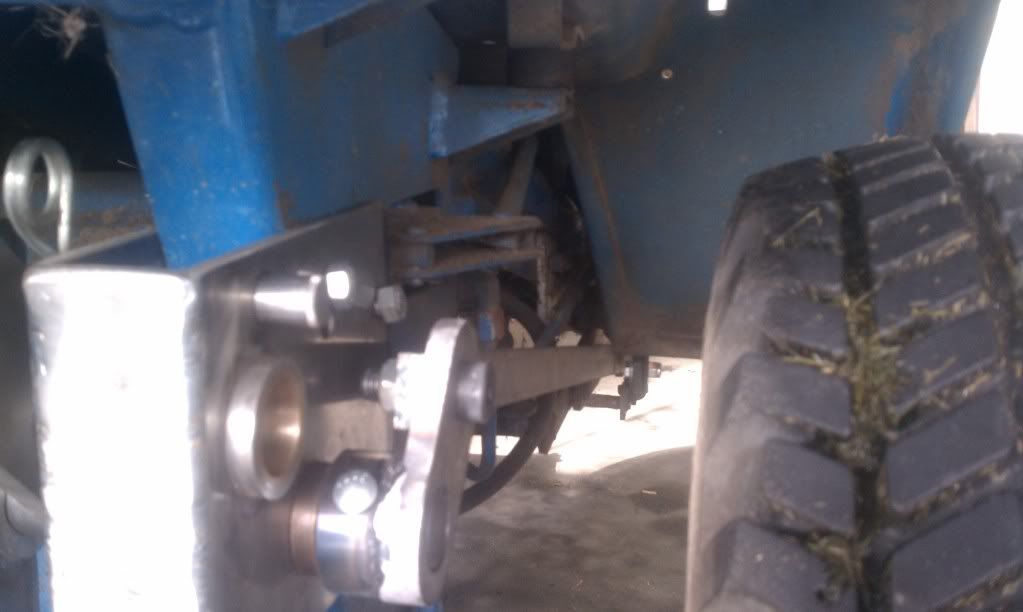

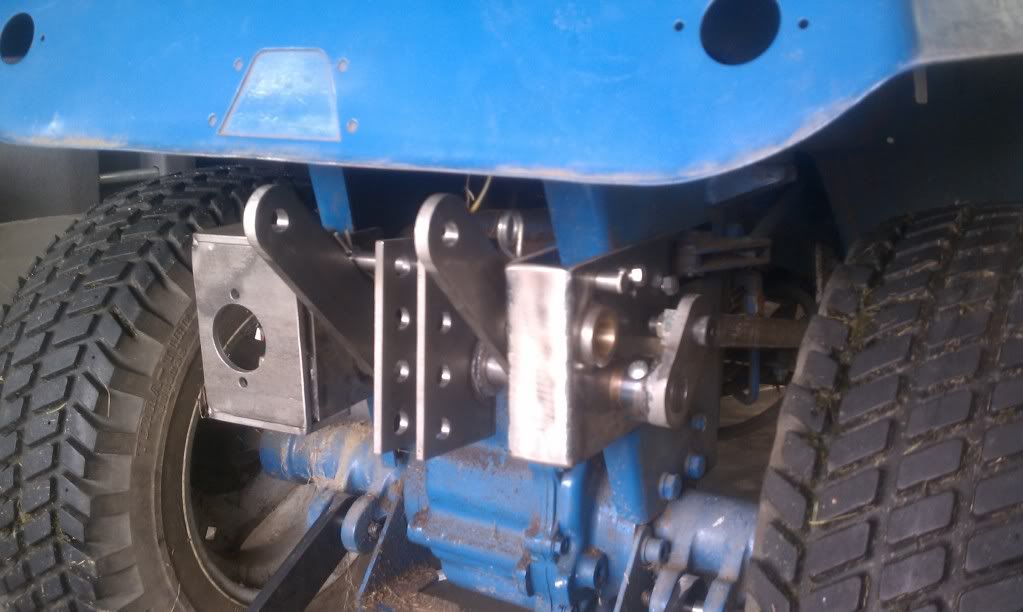

Ok, got the upper hitch mounted and all for like a glove, goes up and down great !
Posted Image
Posted Image
Posted Image
Posted Image
Just need to build the lower links and standoff for the lower arms.
  • KennyP said thank you

#79 KennyP ONLINE

KennyP

    FORDoholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2253
  • 28,395 Thanks
  • 39,658 posts
  • Location: Collinsville, Oklahoma

Posted September 24, 2011 - 05:17 PM

Looking good, Keith! That lift bar coming from the cylinder is not stock, what did you use? Lower arm look to be 3/8" bar stock. Keep the pics coming.

#80 skyrydr2 ONLINE

skyrydr2

    Tractorholic

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 5032
  • 3,406 Thanks
  • 3,156 posts
  • Location: Gardner, Massachusetts!

Posted September 24, 2011 - 05:35 PM

Link is 3/8 x 1" o1 steel , the lower lift arms are 1/2"x2" bar stock .
  • KennyP said thank you

#81 mjodrey OFFLINE

mjodrey

    Accumulator

  • Senior Member
  • Contributor
  • Member No: 92
  • 2,343 Thanks
  • 13,481 posts
  • Location: Upper Granville, Nova Scotia, Canada

Posted September 24, 2011 - 05:50 PM

Man Keith,your doing a nice neat job,looking good.

#82 KennyP ONLINE

KennyP

    FORDoholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2253
  • 28,395 Thanks
  • 39,658 posts
  • Location: Collinsville, Oklahoma

Posted September 24, 2011 - 07:41 PM

Ain't it pretty? I'm liking this.
Thanks for the info, Keith.

#83 skyrydr2 ONLINE

skyrydr2

    Tractorholic

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 5032
  • 3,406 Thanks
  • 3,156 posts
  • Location: Gardner, Massachusetts!

Posted September 27, 2011 - 05:23 PM

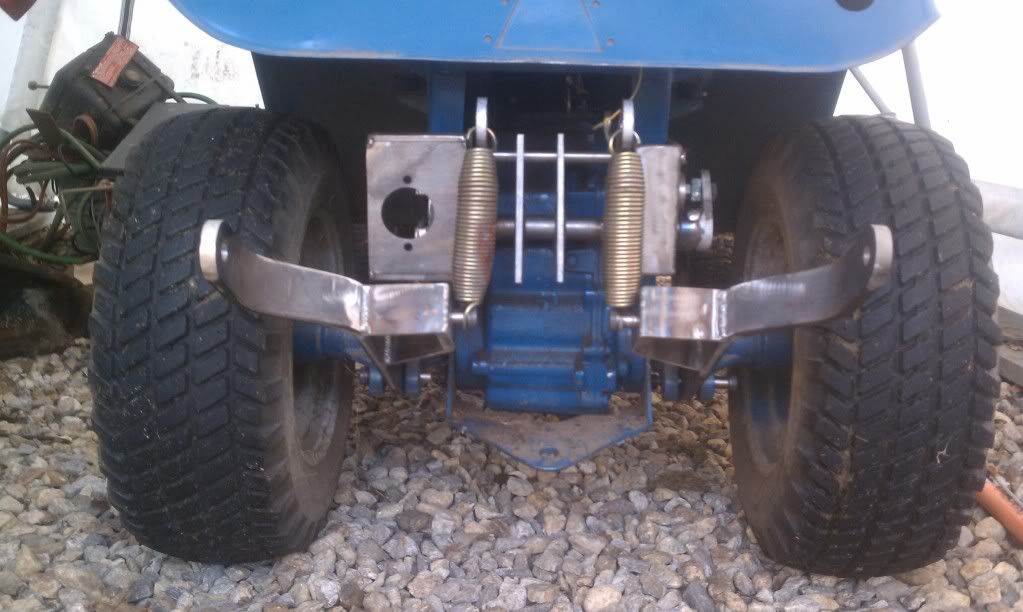

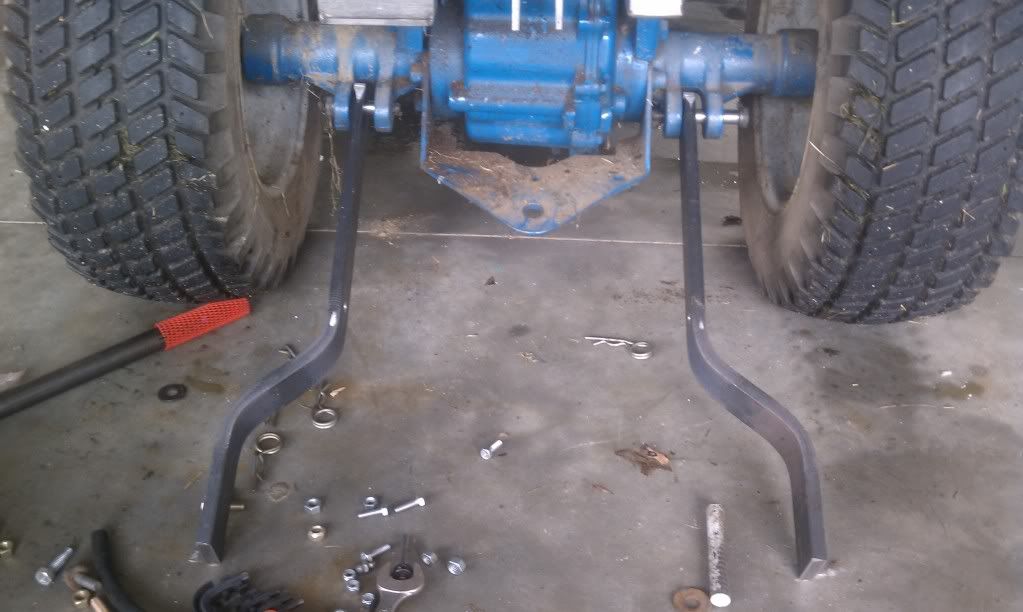

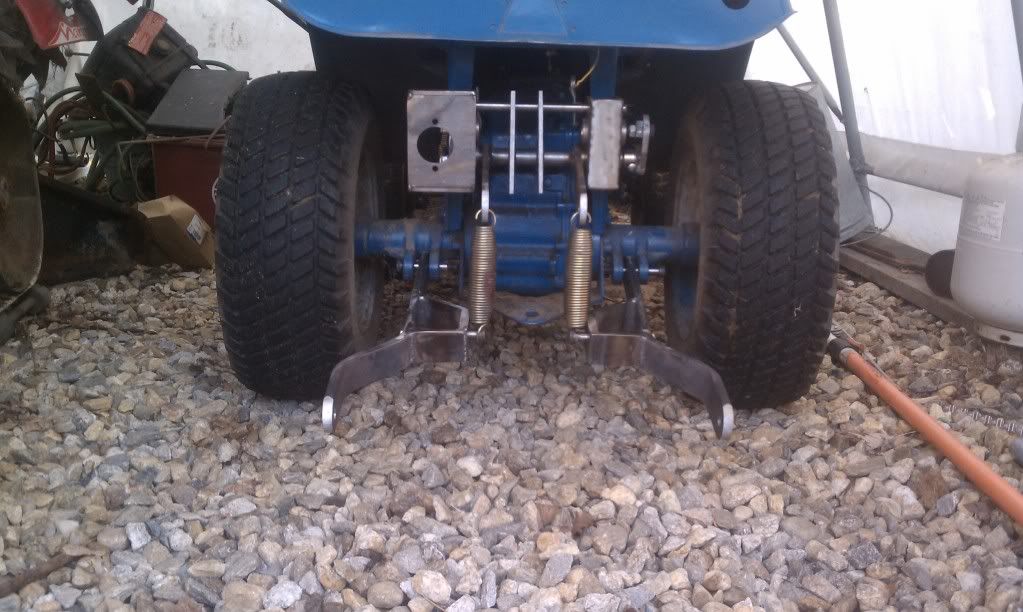

Found some pieces to mock up the lower arms and figure out roughly what I want to do for the length of the vertical links.
Posted Image
Posted Image
Posted Image
Almost done, just a few things left, then it will be time to tear down the old booger and give it a thorough going through and fresh paint.

#84 KennyP ONLINE

KennyP

    FORDoholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2253
  • 28,395 Thanks
  • 39,658 posts
  • Location: Collinsville, Oklahoma

Posted September 27, 2011 - 05:48 PM

Wow! A lot of mock up going on there. Thanks for the update. It's looking good.

#85 kubotakid OFFLINE

kubotakid

    Member

  • Member
  • Member No: 2383
  • 5 Thanks
  • 22 posts

Posted September 27, 2011 - 10:27 PM

I have an opinion,. but,. You didnt ask for it, And I dont wanna make you mad , I admire your ambition, Eric

#86 skyrydr2 ONLINE

skyrydr2

    Tractorholic

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 5032
  • 3,406 Thanks
  • 3,156 posts
  • Location: Gardner, Massachusetts!

Posted September 28, 2011 - 04:00 AM

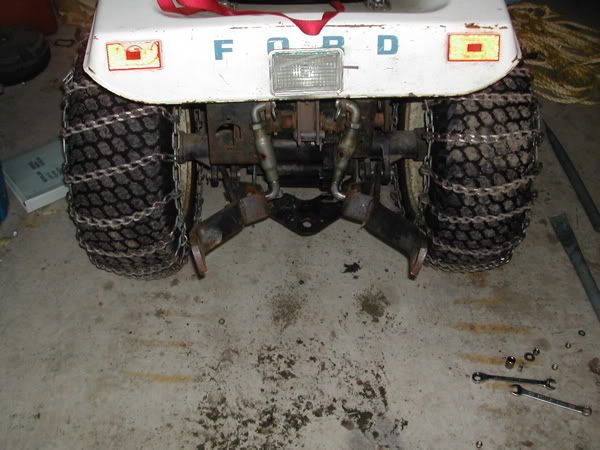

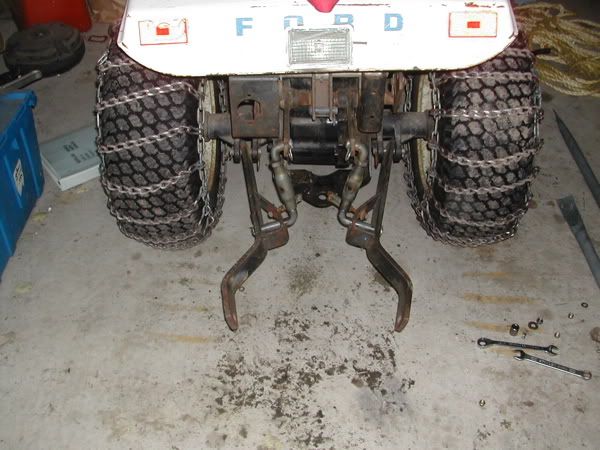

A few pics of a factory Ford/Jake 3 point hitch just so anyone curious about what it might be like originally.
Posted Image
Posted Image
  • KennyP said thank you

#87 KennyP ONLINE

KennyP

    FORDoholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2253
  • 28,395 Thanks
  • 39,658 posts
  • Location: Collinsville, Oklahoma

Posted September 28, 2011 - 04:53 AM

That helps a lot. The parts view leaves a lot to the imagination. Yours is looking mighty fine.

#88 skyrydr2 ONLINE

skyrydr2

    Tractorholic

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 5032
  • 3,406 Thanks
  • 3,156 posts
  • Location: Gardner, Massachusetts!

Posted September 28, 2011 - 04:27 PM

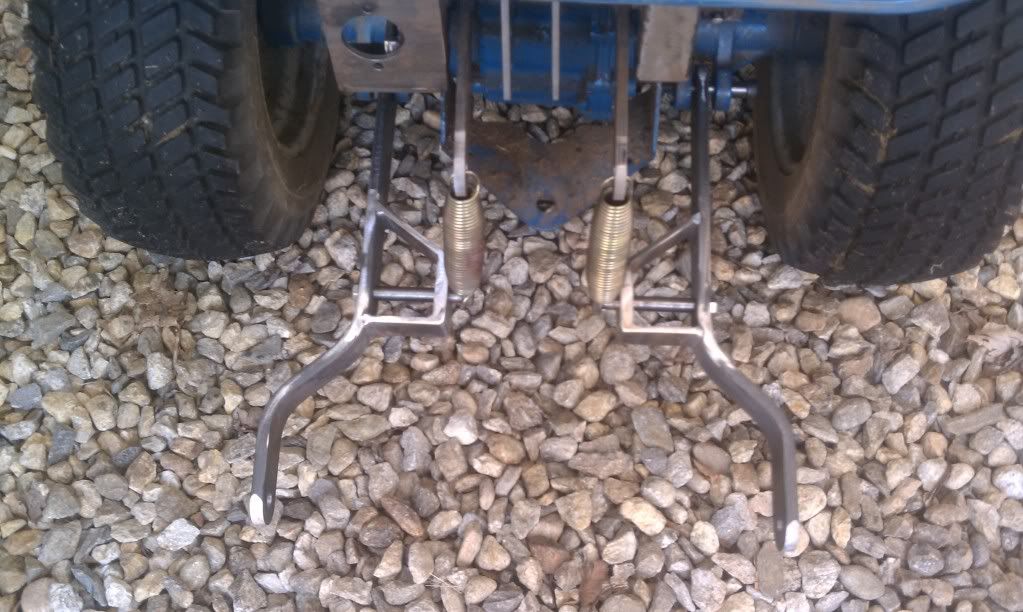

These links should work out nicely
Posted Image
  • MH81 and KennyP have said thanks

#89 KennyP ONLINE

KennyP

    FORDoholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2253
  • 28,395 Thanks
  • 39,658 posts
  • Location: Collinsville, Oklahoma

Posted September 28, 2011 - 06:14 PM

How you can put this all together so fast is beyond me, but I'm diggin' it. But, since you have already put one 3-pt. together, this one is rather simple. Neat links!

#90 skyrydr2 ONLINE

skyrydr2

    Tractorholic

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 5032
  • 3,406 Thanks
  • 3,156 posts
  • Location: Gardner, Massachusetts!

Posted September 28, 2011 - 07:45 PM

Only a few bits left to get set up , it goes up and down nicely . I am going to try it out pulling a few trees and then pulling the bottom plow and see how it handles it.
