E-Z Spray tractor mounted sprayer (E-Z Rake) - SW MI



  • Please log in to reply
8 replies to this topic

#1 Talntedmrgreen OFFLINE

Talntedmrgreen

    Simplicity Enthusiast

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 8186
  • 3,062 Thanks
  • 2,177 posts
  • Location: Dorr, MI

Posted December 23, 2015 - 10:18 AM

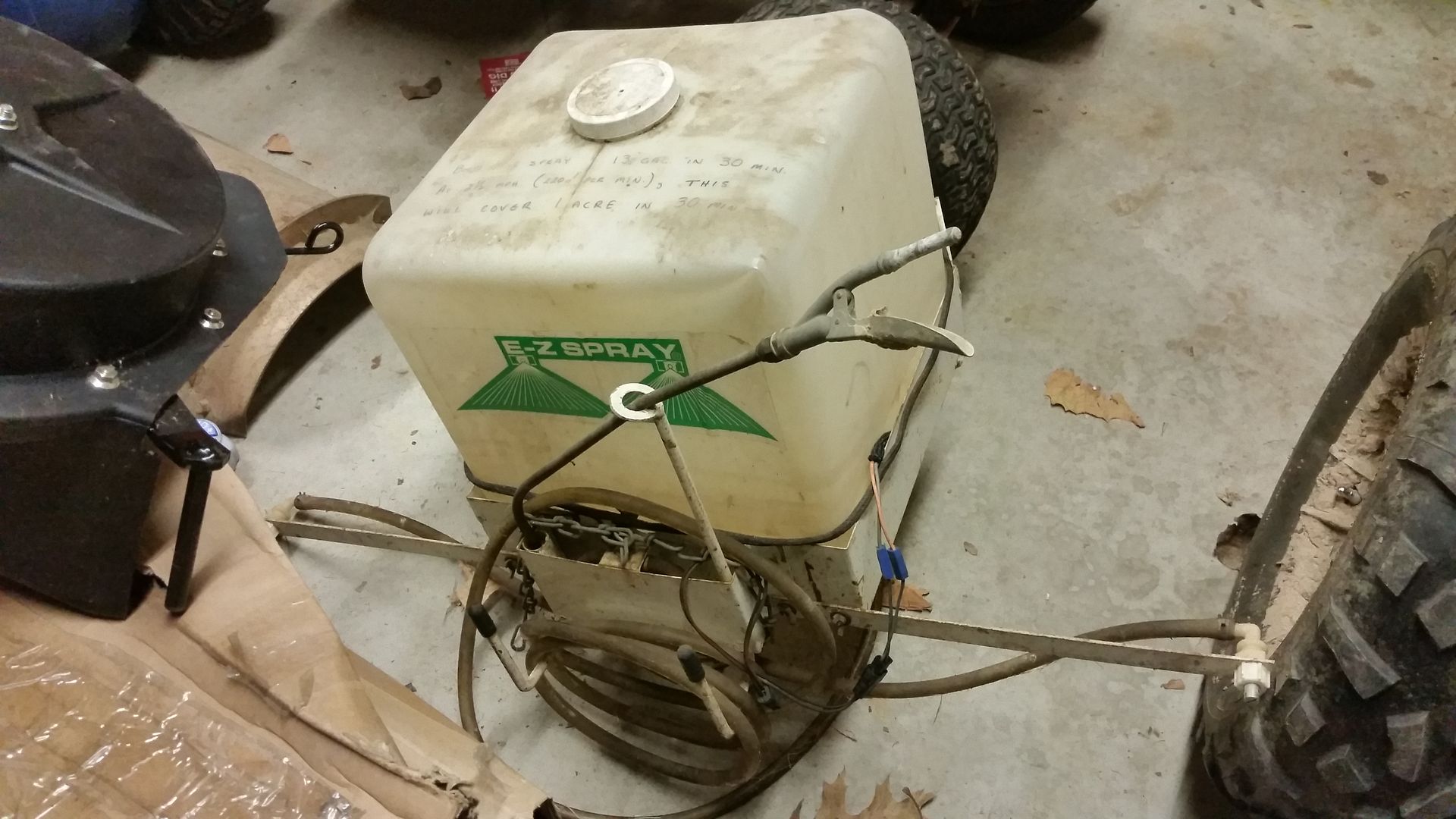

This is an E-Z Rake 12V powered, tractor mounted rear sprayer.  This is the only one I've been able to track down, but I have seen it mentioned in E-Z Rake literature.  It appears to have a generic style mount that sits on the drawbar of garden tractors.

E-Z Rake built a variety of tractor mounted attachments, most commonly, the vac systems and front mount detatchers.  This would be a sprayer to include in your collection.  I have not tested it, but will do so and reduce the price by $50 if the motor doesn't spin when powered off a battery.  Includes boom and spray wand.

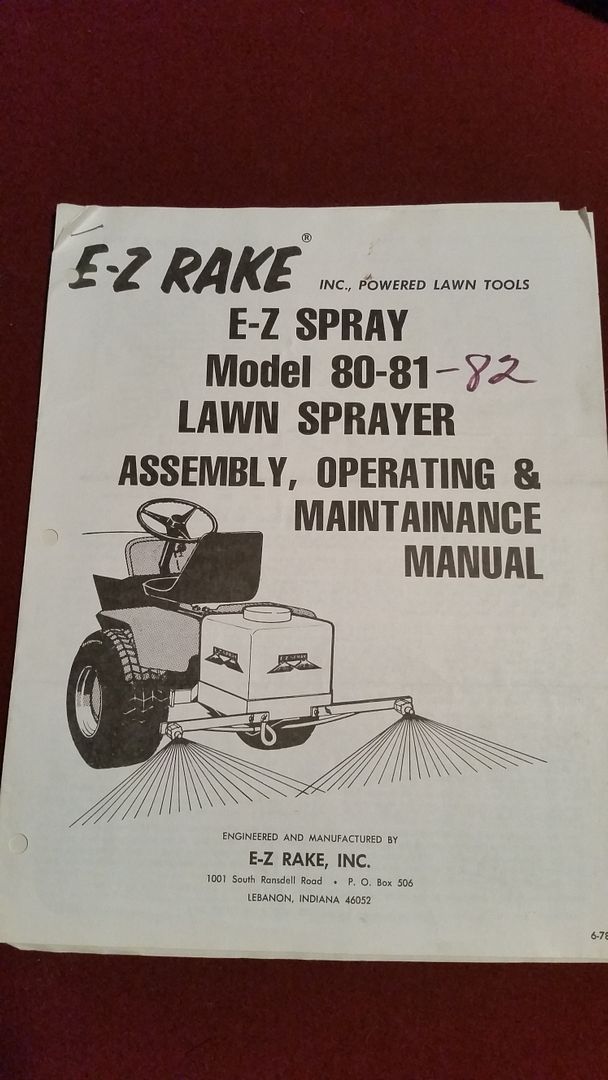

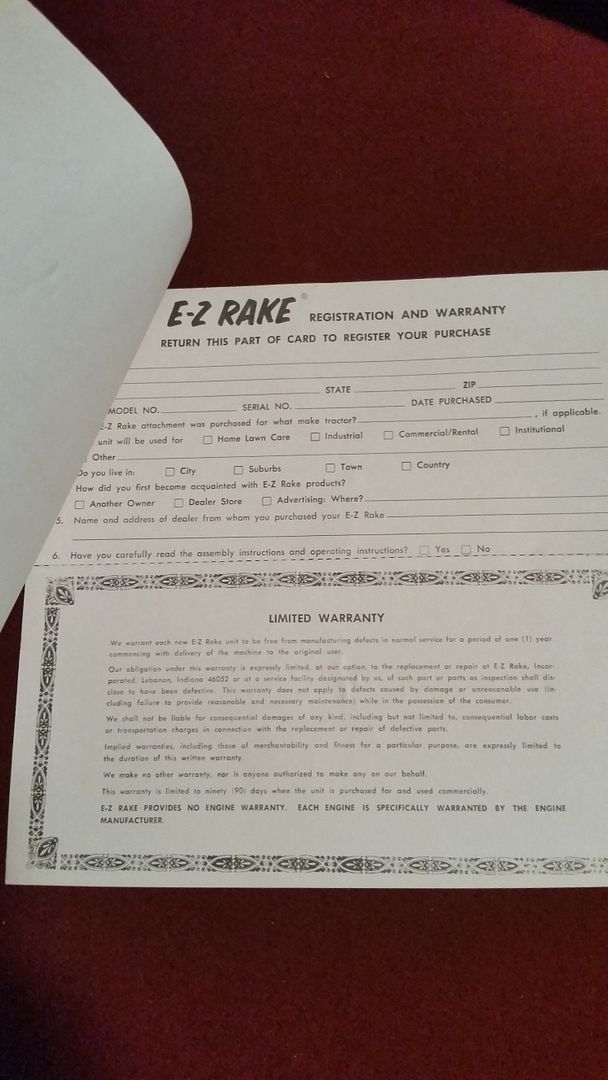

Includes original manual with parts, owners info, and warranty card.  I purchased this from the original owner and will ship fastenal if needed.  $200


  • VintageIronCollector said thank you

#2 Dayton_King OFFLINE

Dayton_King
  • Senior Member
  • Member No: 68926
  • 622 Thanks
  • 696 posts
  • Location: Atlanta Georgia

Posted December 28, 2015 - 10:17 PM

I am curious, 3 point or sleeve hitch?

#3 Dayton_King OFFLINE

Dayton_King
  • Senior Member
  • Member No: 68926
  • 622 Thanks
  • 696 posts
  • Location: Atlanta Georgia

Posted December 28, 2015 - 10:18 PM

Just reread it, pic of the mount side?

#4 Talntedmrgreen OFFLINE

Talntedmrgreen

    Simplicity Enthusiast

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 8186
  • 3,062 Thanks
  • 2,177 posts
  • Location: Dorr, MI

Posted December 31, 2015 - 11:24 PM

Sorry...lost track of this. Ill get a pic in the morning. The PO had a powermax (this sure doesnt fit that) and a Jake. The mount looks somewhat generic though.

#5 Talntedmrgreen OFFLINE

Talntedmrgreen

    Simplicity Enthusiast

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 8186
  • 3,062 Thanks
  • 2,177 posts
  • Location: Dorr, MI

Posted January 02, 2016 - 09:44 AM

The inside spread on the top bar is 10 and a quarter inches. The height from the lower draw bar mount is seven and a half inches.

Attached Thumbnails

  • 20160102_093811.jpg
  • 20160102_093826.jpg
  • 20160102_093839.jpg


#6 Dayton_King OFFLINE

Dayton_King
  • Senior Member
  • Member No: 68926
  • 622 Thanks
  • 696 posts
  • Location: Atlanta Georgia

Posted January 02, 2016 - 11:04 AM

Thanks I will get back to you today. It looks like it will fit a jake slot hitch

#7 Dayton_King OFFLINE

Dayton_King
  • Senior Member
  • Member No: 68926
  • 622 Thanks
  • 696 posts
  • Location: Atlanta Georgia

Posted January 03, 2016 - 11:55 AM

Do you think it will fit a slot hitch. I am still doing research

#8 OldBuzzard OFFLINE

OldBuzzard

    Tractorholic

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 805
  • 6,482 Thanks
  • 4,634 posts
  • Location: Oberlin, OH

Posted January 03, 2016 - 04:40 PM

That looks like the same mounting setup as they used for the E-Z Vac.



The part you see was 'universal', and IT mounts onto a separate 'hitch' that they made for each tractor brand.



Here are pics of the 'hitch' for a Bolens tube frame,


and a pic of the vac part mounted on it

.



I'll bet that it would just drop right on my 1256.


Edited by OldBuzzard, January 03, 2016 - 04:43 PM.

  • Bruce Dorsi, Talntedmrgreen and VintageIronCollector have said thanks

#9 Talntedmrgreen OFFLINE

Talntedmrgreen

    Simplicity Enthusiast

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 8186
  • 3,062 Thanks
  • 2,177 posts
  • Location: Dorr, MI

Posted February 26, 2016 - 07:35 AM



That looks like the same mounting setup as they used for the E-Z Vac.



The part you see was 'universal', and IT mounts onto a separate 'hitch' that they made for each tractor brand.



Here are pics of the 'hitch' for a Bolens tube frame,



and a pic of the vac part mounted on it


.



I'll bet that it would just drop right on my 1256.





That is very helpful, thank you!
