Nominations for Tractor of the Month
Garden Tractors and Parts on eBay



- - - - -

Montgomery Wards Hydrostatic 16


  • Please log in to reply
17 replies to this topic

#1 Rembrant OFFLINE

Rembrant

    New Member

  • New Member
  • Member No: 2324
  • 2 Thanks
  • 8 posts

Posted April 10, 2011 - 11:28 AM

Hi all. I bought a tractor. An old one.
It's cool but I have spent way more time wrenching than I have spent mowing. My goal is to keep working on it until it is reliable. My hope is that I get to that point befor I run out of money and or patience.
First it was a hydraulic line that had failed and been "repaired" with a hose clamp. It would come off and spew fluid all over the deck. Which would kill the hydrostatic drive. Replaced the line with a new on from grainger. That took two tries. The first line I bought was the same length as the old one but the fittings were twice as long as the old ones which effectively shortened it. Got the next size up, 18" to 24" That fixed it. I refilled the fluids and drove it around for a bit. It worked great. Put the deck back on and started mowing. About ten minutes later it threw the deck drive belt. I put it back on, it stayed on for about a minute. The second time is when I noticed that the set screw had come loose on the main deck pully. That had chewed up the sheet metal on the deck.
So I dropped the deck again. Took it apart and discovered that the shaft was pretty jacked up. Time for some back ground. The deck has three blades. The center blade has dual pullies. One connects all three blades with a belt. This belt and pullies are under a sheet metal cover. The second pully on the center blade is above the cover and is connected to the motor at the front of the tractor. The shaft on the center blade had a nut on the end and keyway with a set screw. Well there was no nut on the end and the threads had been worn down to the point where they were mere grooves. The end of it had obviously broken off at some point. So the set screw on the keyway was all that was holding it together.
They guy I bought it from said he had lubed the deck just befor I bought it. I guess he didn't get it tight enough. That and the fact that the keyway set screw is meant to keep the pully from spinning on the shaft. It isn't meant to hold the pully on the shaft, the nut on the end is supposed to do that.
So I need to replace that shaft or improvise something. If I could find one I would probably buy it. Failing that I might see what kind of threads I could cut into whats left of the shaft I have.
To end on a more upbeat note, the motor runs strong and starts right up every time. Once I replaced the bad hose and got the fluids full the deck lift and drive have both worked fine. It will really get up and go at full throtle. Vroom.:laughingteeth:
What I really want and need are any manuals I can find and a source for parts.

#2 NUTNDUN OFFLINE

NUTNDUN

    Lost in Cyber Space

  • Admin
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 3
  • 10,266 Thanks
  • 15,618 posts
  • Location: Pennsylvania

Posted April 10, 2011 - 06:34 PM

I don't know where you are located but for future reference, Tractor Supply makes hydraulic hoses while you wait.

As for the center pulley on the mower deck, if it is a keyed shaft and has the key in it to keep the pulley from spinning on the shaft the set screw should be enough to keep it from moving up and down on shaft and from coming off of the shaft. Is there possibly two locations for set screws on the pulley? You could use a transfer punch to mark the position of the set screw on the shaft so you can use a drill bit to put a dimple recess for the set screw to sit in. Also use loctite on the set screw when you reassemble it.

#3 caseguy OFFLINE

caseguy

    Connoisseur of Rusty Junk

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 906
  • 1,624 Thanks
  • 5,600 posts
  • Location: Edinburg, PA

Posted April 10, 2011 - 07:38 PM

Montgomery Wards stuff, in my experience, is HARD to find information and manuals for. Do you know who built the tractor for Montgomery Wards? (Model and serial number information in a post may help with this) That may be the first step in finding (if they're still available) a replacement shaft or spindle assembly. If the company that built it for them is still in business, there may have been an identical model badged under their name and some parts may still be available for that tractor. Another idea is that you could post some pics and dimensions and maybe there would be some others with something similar. Just some thoughts, hope they help.
  • MH81 said thank you

#4 Texas Deere and Horse OFFLINE

Texas Deere and Horse

    RED Wild Hogs, Horses & Deeres

  • Staff Admin
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 1435
  • 14,464 Thanks
  • 15,392 posts
  • Location: East of San Antonio Texas

Posted April 11, 2011 - 10:50 AM

Rembrant, If you have the same model as I have, yours was built by Gilson. One thought I had on the shaft is, if the pulley bottoms out on the shaft at the right height, you can cut the spindle shaft off flush with the pulley. Then you can center drill the shaft and tap it for a bolt and use the bolt with a flat washer to retain the pulley. Like George said, I would spot drill the shaft for the set screw also. I hope this helps...

Here is a pictures of my Hydro 16...


#5 Rembrant OFFLINE

Rembrant

    New Member

  • New Member
  • Member No: 2324
  • 2 Thanks
  • 8 posts

Posted April 11, 2011 - 08:47 PM

I believe it is a Gilson. It is VERY similar to Brians. The only difference I can see is the foot rest/running boards on Brians is different than mine. Mine just has foot sized foot rests. The fenders on mine are smaller too. They really don't cover the tire much, I can see the inside edge of the rear tire. I need new a camera.
There is a second hole on the pully but I don't think it has threads. A second screw would help center the pully on the damaged shaft. The set screw held it together until it came loose. But that doesn't make it ideal. I would still like to replace the spindle with a new one. But I think I will end up cutting the broken end off and retaping it. I think the nut is meant to seat the bearing. Tightening the nut pulls everything together.


#6 Rembrant OFFLINE

Rembrant

    New Member

  • New Member
  • Member No: 2324
  • 2 Thanks
  • 8 posts

Posted April 11, 2011 - 08:50 PM

So, Brian, just how many tractors do you own? I can see three in the pic, which sugests you may own more than three.

#7 Rembrant OFFLINE

Rembrant

    New Member

  • New Member
  • Member No: 2324
  • 2 Thanks
  • 8 posts

Posted April 25, 2011 - 09:16 PM

I got a new hose at Grainger. It is a case of over kill but I can live with that. I have driven it quite a bit with no issues there.
The mower deck on the other hand still needs work. I tore it down and got a good look at it. The threads are gone. I no longer think it was broken off. There may be a 1/8 inch hole down the center, That or just a deep dimple. It is slightly bent and there is some wear where the upper bearing goes. So I would really like to replace it.
To that end I need a specific identification of the tractor.
As noted I think it is an early 70's Gilson made Mongomery Ward Hydrostatic 16 with a 42 inch deck. The only number I could find on it was on the side of the Briggs and Straton motor. It was very hard to read and half on half off of what looks like an original sticker that can no longer be read. 326-4- 3403 017209291 I put the fourth digit between dashes because it was very hard to read and may or may not have been a 4.
So does anyone know what it means? Is it like a vin? A link to the info would work for me. Thanks in advance for what ever info you can pass along.

#8 RustyTub OFFLINE

RustyTub

    Tractorholic

  • Senior Member
  • Member No: 2702
  • 25 Thanks
  • 137 posts
  • Location: Southern Oregon

Posted April 26, 2011 - 12:12 AM

Is. It a fenter discharge? I will take pics of my deck iam going to tear it down and inspect everything before it goes into use. I do have the parts list for my 42 inch deck and will post more tomorrow. Every thing is at work.
  • Texas Deere and Horse said thank you

#9 EricFromPa OFFLINE

EricFromPa

    Tractorholic

  • Senior Member
  • Contributor
  • Member No: 2135
  • 2,287 Thanks
  • 2,326 posts
  • Location: Bedford County Pa.

Posted April 26, 2011 - 02:55 AM

Years for the Wards with the smaller fenders and separate foot rests are 1972-1975

Here's a list of all Gilson model numbers for the 16hp Single cylinder Briggs powered machines.
53019 B&S 326437 16hp
53020 B&S 326437 16hp
53021 B&S 326437 16hp
53022 B&S 326437 16hp
53024 B&S 326437 16hp
53025 B&S 326437 16hp
53026 B&S 326437 16hp
53027 B&S 326437 16hp
53028 B&S 326437 16hp
53030 B&S 326437 16hp
53031 B&S 326437 16hp
53032 B&S 326437 16hp

Attached Thumbnails

  • Monkey Wards.jpg

Edited by EricFromPa, April 26, 2011 - 03:10 AM.

  • Texas Deere and Horse said thank you

#10 RustyTub OFFLINE

RustyTub

    Tractorholic

  • Senior Member
  • Member No: 2702
  • 25 Thanks
  • 137 posts
  • Location: Southern Oregon

Posted April 26, 2011 - 03:08 PM

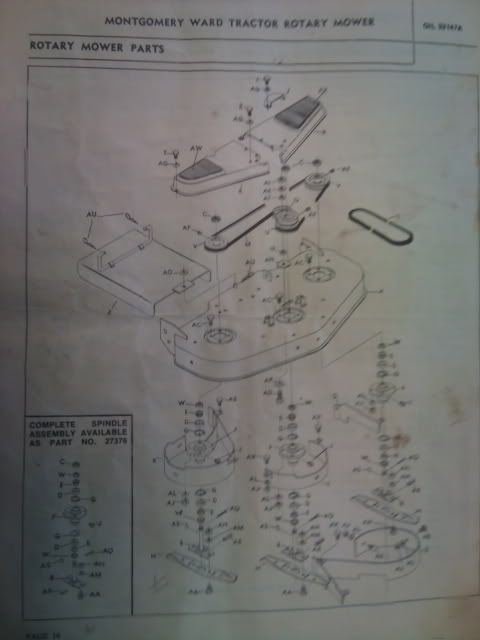

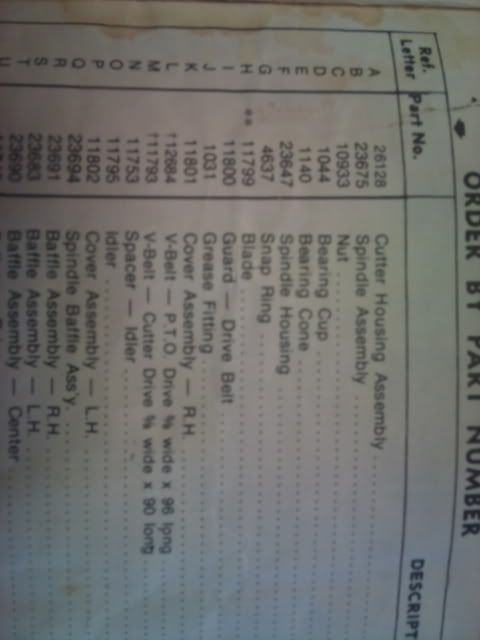

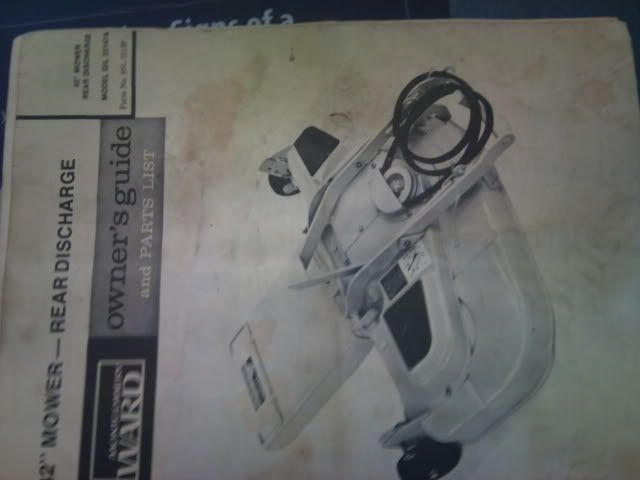

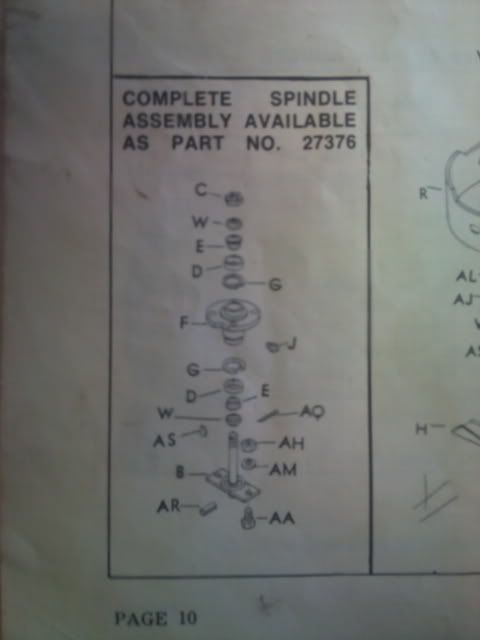

Ok So after some searching thru my parts manual I found that all three spindles are the same. here are some pics and what nots.
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

Hope this helps, I tried scanning them in but but scanner is junk I will go to Kinkos tomorrow and scann all my manuals I have
  • MH81 and Texas Deere and Horse have said thanks

#11 Texas Deere and Horse OFFLINE

Texas Deere and Horse

    RED Wild Hogs, Horses & Deeres

  • Staff Admin
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 1435
  • 14,464 Thanks
  • 15,392 posts
  • Location: East of San Antonio Texas

Posted April 26, 2011 - 03:18 PM

Rusty, Thanks for posting the manual, I have that exact deck under my 15/16 hydro. I don't have a deck for my 12 hydro, but I think it's a 1969. Thanks, Brian

#12 RustyTub OFFLINE

RustyTub

    Tractorholic

  • Senior Member
  • Member No: 2702
  • 25 Thanks
  • 137 posts
  • Location: Southern Oregon

Posted April 26, 2011 - 05:10 PM

42 inch Deck - Manuals - Garden Tractor Talk - Forums

Eric from PA posted this manual as well.

#13 Rembrant OFFLINE

Rembrant

    New Member

  • New Member
  • Member No: 2324
  • 2 Thanks
  • 8 posts

Posted April 26, 2011 - 08:57 PM

First off thanks to EricFromPA and RustyTub. The manuals are pricelss to me. I am at the newbie download limit because I grabbed two that Eric had uploaded. So I'll be back tomorrow for the deck manual. The funny thing is that the manual had almost zero information on what I most wanted. Hydraulic fluid type and level. It pretty much says it gets 4 quarts at the factory and it will be fine for the life of the machine. Unless there is a major leak in which case hire a mechanic.

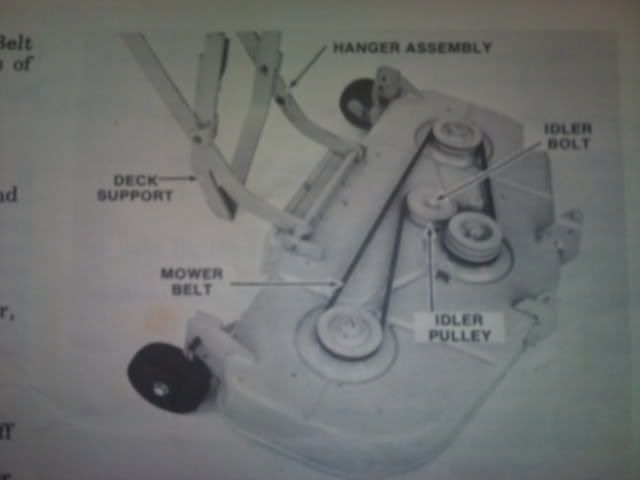

My deck is like the second picture in RustyTub's 3:08 PM post. There is a slight difference, the rod that the hanger assembly pivots on is the length of the deck on mine. The deck wheels are attached to it so that you can adjust the cut height with a bolt and spring mechanism near the middle of the deck.
So it is a 72 through 75.

  • Bolens800uk said thank you

#14 RustyTub OFFLINE

RustyTub

    Tractorholic

  • Senior Member
  • Member No: 2702
  • 25 Thanks
  • 137 posts
  • Location: Southern Oregon

Posted April 26, 2011 - 11:55 PM

My parts manual for my 15 hydro says type a auto trans fluid I will post that tomorrow when I am back at work. I need to get these manuals uploaded but there is never enough time in the day.

#15 EricFromPa OFFLINE

EricFromPa

    Tractorholic

  • Senior Member
  • Contributor
  • Member No: 2135
  • 2,287 Thanks
  • 2,326 posts
  • Location: Bedford County Pa.

Posted April 27, 2011 - 12:13 AM

Just uploaded the 15 Hydro manual.
http://gardentractor...3a53bab2af99d59

Page 9 it calls for 4 Quarts of Type A automatic transmission fluid.
