homelte T-10 attachments

simplicity allis chambers

  • Please log in to reply
6 replies to this topic

#1 case1man ONLINE

case1man
  • Senior Member
  • Member No: 40153
  • 101 Thanks
  • 106 posts
  • Location: kentucky

Posted April 24, 2015 - 05:28 PM

Have a homelite t-10 and a allis b-10 will any of the attachments interchange or the rear hitch off the allis fit the homelite



#2 trowel OFFLINE

trowel

    Summer.

  • Senior Member
  • -GTt Supporter-
  • Member No: 5127
  • 4,819 Thanks
  • 4,533 posts
  • Location: ma.

Posted April 24, 2015 - 05:31 PM

Hamman would know for sure, hopefully he will see this thread.


  • case1man said thank you

#3 skunkhome OFFLINE

skunkhome

    Member

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 8044
  • 322 Thanks
  • 455 posts
  • Location: Louisiana

Posted April 24, 2015 - 07:05 PM

Which T10 do you have? AC or Simplicity built? If you don't know post photo and we can tell you.
When you say "hitch" are you talking about the lift lever?

Edited by skunkhome, April 24, 2015 - 07:07 PM.

  • case1man said thank you

#4 case1man ONLINE

case1man
  • Senior Member
  • Member No: 40153
  • 101 Thanks
  • 106 posts
  • Location: kentucky

Posted April 24, 2015 - 08:05 PM

Simplicity built same as 3410. Talking about the rear lift

#5 skunkhome OFFLINE

skunkhome

    Member

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 8044
  • 322 Thanks
  • 455 posts
  • Location: Louisiana

Posted April 24, 2015 - 09:36 PM

The B10 stuff should work on a Simplicity built T10. The lift lever will physically fit but you need a special bushing set for the left hand pivot. Some people use use the standard lock rings with a smaller diameter (OD) washer(s) in the middle. B10 used a rod running from the rock shaft to lift lever. 3410 uses a cable.

Edited by skunkhome, April 24, 2015 - 11:08 PM.

  • hamman said thank you

#6 hamman ONLINE

hamman

    Homelite Owner Extraordinaire

  • Senior Member
  • Contributor
  • Member No: 1733
  • 5,628 Thanks
  • 2,583 posts
  • Location: Michigan

Posted April 24, 2015 - 10:25 PM

Some of the Homelite rear lifts were rectangle . If the rear lift is round as is the Allis B-10 they should fit. Now some were bigger than others. You would have to check and see if they will fit.                                                                                                                                                                                           Roger



#7 skunkhome OFFLINE

skunkhome

    Member

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 8044
  • 322 Thanks
  • 455 posts
  • Location: Louisiana

Posted April 24, 2015 - 11:05 PM

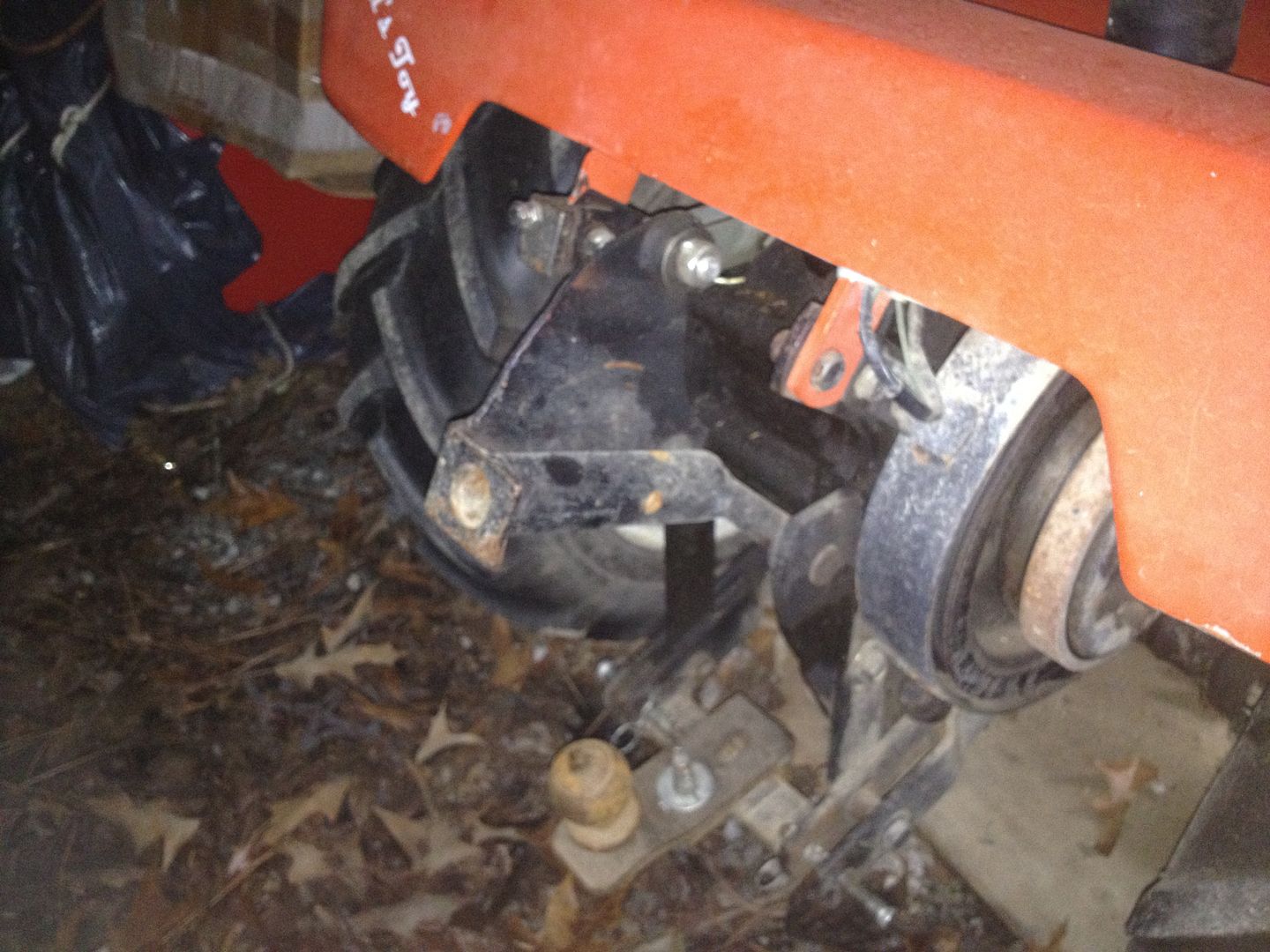

This is a FDT lift lever on my 3414s.

  • hamman said thank you
