Need Help Mounting Simplicity Broadmoor 728 Deck


  • Please log in to reply
6 replies to this topic

#1 Radarsonwheels OFFLINE

Radarsonwheels
  • Member
  • Member No: 41776
  • 7 Thanks
  • 10 posts
  • Location: Levittown PA

Posted July 29, 2013 - 07:36 PM

Hi I have a new (to me) 728 and it came with a mower deck and bracket. I think I have it on wrong can somebody help? Also what drive and pto belts do I need to buy? these are shot.

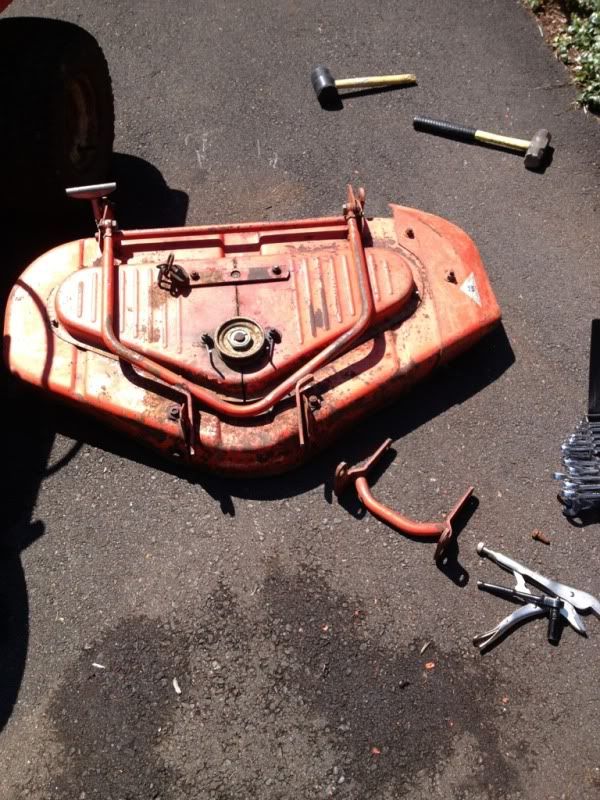

Pics!
D111684E-92A7-447D-8645-6C8C0300AE41-532
1616423E-D5A8-4558-ACC5-52AFBB42ACA3-527

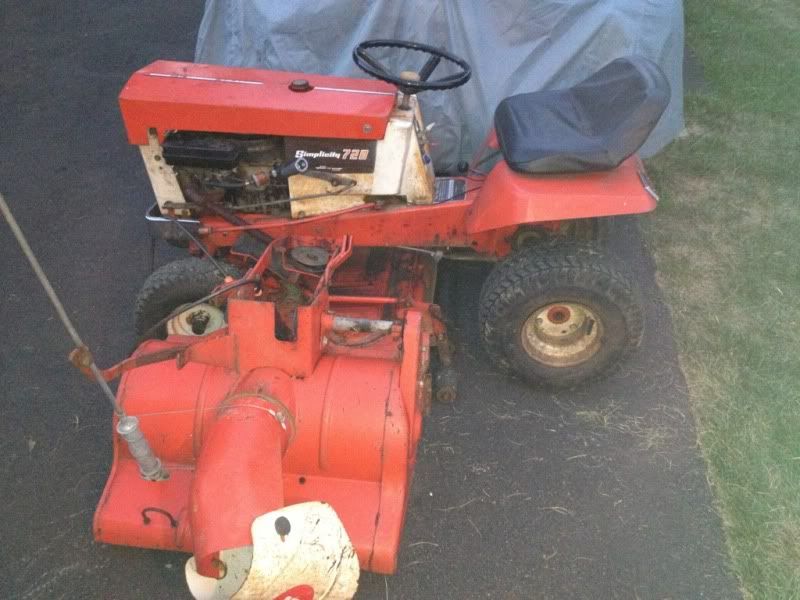

The front of the deck hangs too low- what did I do wrong?
Thanks!
Kevin
  • JRJ said thank you

#2 Radarsonwheels OFFLINE

Radarsonwheels
  • Member
  • Member No: 41776
  • 7 Thanks
  • 10 posts
  • Location: Levittown PA

Posted July 29, 2013 - 08:20 PM

You can see the angle is wrong but the front bracket only seemed to want to go on one way. Im a little lost looking at the 'wishbone' that pivots from the back
FABCE6AE-8A74-4B17-BA8E-917621509FA8-532

#3 Radarsonwheels OFFLINE

Radarsonwheels
  • Member
  • Member No: 41776
  • 7 Thanks
  • 10 posts
  • Location: Levittown PA

Posted July 29, 2013 - 08:21 PM

And the missing pic of the (botched?) front mount:
A677F91A-8336-4AD0-98C8-B26AF5863832-527

#4 achomesteader OFFLINE

achomesteader

    GT Fanatic

  • Senior Member
  • Contributor
  • Member No: 8128
  • 867 Thanks
  • 2,231 posts
  • Location: Winston-Salem, North Carolina

Posted July 30, 2013 - 07:50 AM

I believe you've got some parts missing. Look at page 7 of this manual. You should have four spacers (part #8 in the drawing) where the rocker arm assembly (part #7) attaches to the bail assembly (part #16) and the front brackets (parts 1 & 2). All attached with blots, washers and lock washers. Without the spacers, the mowing deck hangs lower than normal because of the slop in the holes. Also, the front of the deck can be raised by turning the eybolts (part #18) in at the rear of the bail assembly.



#5 Canawler OFFLINE

Canawler

    Member

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 1273
  • 1,893 Thanks
  • 1,750 posts
  • Location: York, PA

Posted July 30, 2013 - 08:17 AM

I just went to my garage and got a couple of pics of mine.  Unfortunately I would have to rearrange my whole garage to get really good angles so you get these. :smilewink:














As you can see, my lower bolt on the pivot rocker is back right against the deck bracket and yours is much further forward.  As Greg mentioned, the pivot points are supposed to have normal bolts with bushings that take up the slop.  I can also see that the whole adjusting loop/frame is way too far forward but it looks like the links at the back are already all the way in??  There may be something wrong with how the rear wheels are set up that is causing everything to move too far front??  Maybe a picture of the back would be helpful.



I just uploaded a Broadmoor and deck parts manual to our manuals library that covers all Broadmoor models from '64-'76.  It can be found at:  http://gardentractor...s-manual-64-76/




  • JRJ and Radarsonwheels have said thanks

#6 achomesteader OFFLINE

achomesteader

    GT Fanatic

  • Senior Member
  • Contributor
  • Member No: 8128
  • 867 Thanks
  • 2,231 posts
  • Location: Winston-Salem, North Carolina

Posted July 30, 2013 - 08:41 AM

Also what drive and pto belts do I need to buy? these are shot.



Drive belt is Simplicity part #2165048SM or 1/2" X 85" belt.



PTO belt is Simplicity part #1713515SM or 1/2" X 78" belt.


  • JRJ and Radarsonwheels have said thanks

#7 Radarsonwheels OFFLINE

Radarsonwheels
  • Member
  • Member No: 41776
  • 7 Thanks
  • 10 posts
  • Location: Levittown PA

Posted July 30, 2013 - 03:15 PM

Wow thanks fellas!!

I could not have asked for more helpful or specific responses. Thank you both for your time!

I'm going to simplicity dealer 'Lawn Barn' in 19047 to grab belts today and maybe they will have spacers too. That deck manual is awesome! I printed out a copy and last nite I ordered a 728 owners manual off amazon.

Here's a pic of the rear. Sorry I don't have one with the adjuster shown or the roller mount
EA2E5E6A-A80F-4976-988E-DF8D7251EFE0-527

I hope all that slop will be taken out when I fit the correct spacers in the front mount- hopefully the wishbone will do it's job then and lift the nose along with the rear when adjusted. The roller bar mount on mine has a dowel and a double nutted bolt (an obvious later addition by PO). I'll hafta post a pic of it later.

This thing is slow but in 3rd it sure pops a nice little wheelie! I'm having fun with it and I'm psyched there's so much love for the old girls!

Kevin
