Ok Chris, You Can Stop Guessing Now! My Latest Purchase


  • Please log in to reply
60 replies to this topic

#16 Ryan313 OFFLINE

Ryan313

    PK Fanatic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 7087
  • 3,239 Thanks
  • 5,159 posts
  • Location: Wallkill, NY

Posted December 23, 2012 - 09:20 PM

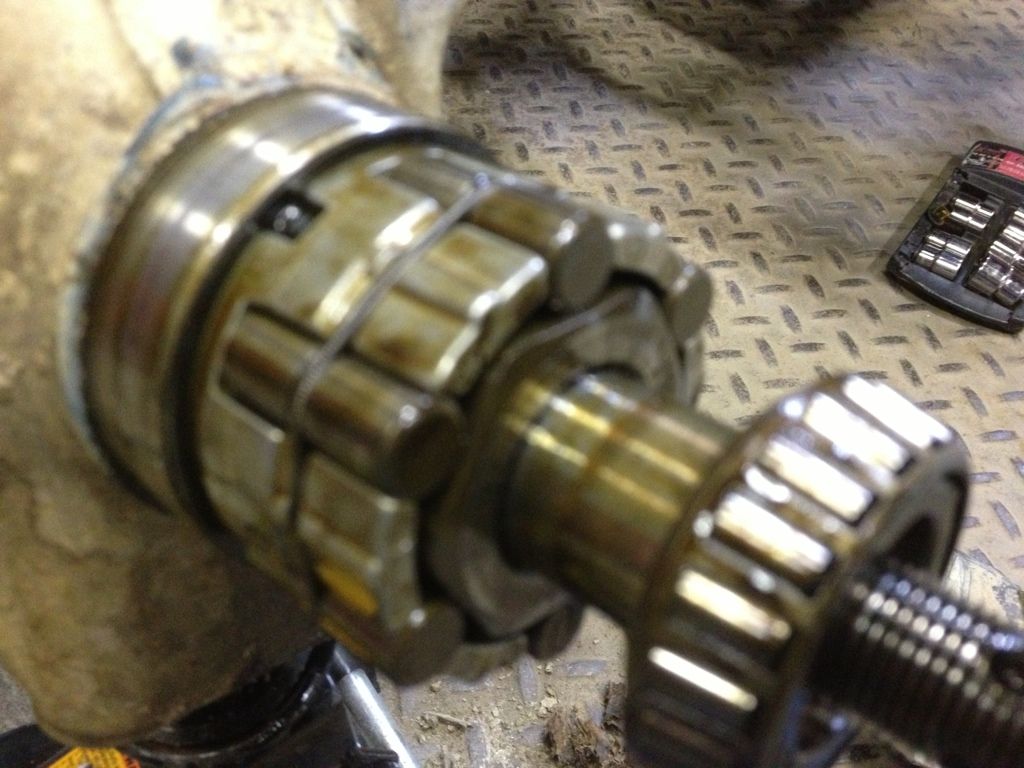

I went back out, to look at the front hubs some more. I took one of the hubs off and I don't see how it works. There is a splined shaft with some funny looking bearing on it. I don't see how anything grabs onto the hub to turn it. Does anybody know how it works? It is apparent that the wires don't engage it.

Posted Image

#17 Ryan313 OFFLINE

Ryan313

    PK Fanatic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 7087
  • 3,239 Thanks
  • 5,159 posts
  • Location: Wallkill, NY

Posted December 23, 2012 - 09:22 PM

I own a 300 Polaris sportsman with the same front suspension. I also have the factory service manual if you don't figure out how the front hubs work. Also if yours is chain drive like mine that should make our project much simpler. Let me know if you need any information and good luck with your project.


You posted this while I was also posting mine. I think that if you have a diagram, or something to show how it works it would help me immensely!

#18 olcowhand OFFLINE

olcowhand

    Red Tractor Nut & Diesel Addict

  • Staff Admin
  • Staff
  • -GTt Supporter-
  • Sponsor
  • Contributor
  • Member No: 20
  • 35,637 Thanks
  • 29,838 posts
  • Location: South Central Kentucky

Posted December 23, 2012 - 09:35 PM

It DOES engage electrically, but I don't know the mechanics of it, other than those round pins held by the spring....they act like cam locks against the hubs, just like many electric starter over-running clutches in motorcycles & ATV's.
  • Ryan313 said thank you

#19 glgrumpy ONLINE

glgrumpy

    Getting Out!

  • Senior Member
  • -GTt Supporter-
  • Member No: 8360
  • 6,661 Thanks
  • 6,475 posts
  • Location: Huntington, IN 46750 North East in State

Posted December 23, 2012 - 11:05 PM

ummmm! What are you trying to do here?? 4 wheel drive tractor? Not sure how this rig is gonna help? Most would use two rear ends and articulate in middle. I was thinking you were gonna put PK sheet metal over this chassis, but guess not! I don't get it, sorry!

There is a guy on Red Square WH forum that made a real wide heavy axle on his smaller tractor, then put a pair of rear wheels/tires on it. He bumped out the rear ones too. Looks kinda neat, sorta like an off-roader, but isn't 4x4 or nothing.

Edited by glgrumpy, December 23, 2012 - 11:07 PM.

  • Ryan313 said thank you

#20 Ryan313 OFFLINE

Ryan313

    PK Fanatic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 7087
  • 3,239 Thanks
  • 5,159 posts
  • Location: Wallkill, NY

Posted December 23, 2012 - 11:09 PM

ummmm! What are you trying to do here?? 4 wheel drive tractor? Not sure how this rig is gonna help? Most would use two rear ends and articulate in middle. I was thinking you were gonna put PK sheet metal over this chassis, but guess not! I don't get it, sorry!

There is a guy on Red Square WH forum that made a real wide heavy axle on his smaller tractor, then put a pair of rear wheels/tires on it. He bumped out the rear ones too. Looks kinda neat, sorta like an off-roader, but isn't 4x4 or nothing.


I am going to use the front end drive components from the four wheeler, and put it onto a PK. It will be more tractor then four wheeler. If you go to the link in my first post about the brainstorming, there is some info and sketches there.

#21 Cvans OFFLINE

Cvans

    Tractorholic

  • Senior Member
  • -GTt Supporter-
  • Member No: 5412
  • 4,486 Thanks
  • 5,014 posts
  • Location: Eastern SD.

Posted December 23, 2012 - 11:32 PM

I'm pretty much booked till tomorrow evening but will mark this so I don't forget and you could send me a personal message tomorrow afternoon as a reminder. The book is pretty comprehensive so I hope the information your looking for is in there. You didn't see any type of coil in the hub? I can't remember if the wires run all the way down to my hubs or not but they just about have to I would think.
  • Ryan313 said thank you

#22 Ryan313 OFFLINE

Ryan313

    PK Fanatic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 7087
  • 3,239 Thanks
  • 5,159 posts
  • Location: Wallkill, NY

Posted December 23, 2012 - 11:38 PM

I took off the override bearing (I think that is what it's called) and the splined part of the axle went into a seal, I could not see behind it. From what I took off, there was no coil in site.

#23 A.C.T. OFFLINE

A.C.T.

    Another Classic Tractor

  • Senior Member
  • -GTt Supporter-
  • Member No: 11085
  • 2,363 Thanks
  • 2,496 posts
  • Location: Dalbo Minnesota

Posted December 23, 2012 - 11:42 PM

Ryan, looks like a really neat project. Keep us updated and best of luck.
  • Ryan313 said thank you

#24 chris m OFFLINE

chris m

    Tractorholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 8148
  • 3,277 Thanks
  • 4,033 posts
  • Location: Charlestown,Rhode Island

Posted December 23, 2012 - 11:45 PM

From looking at it it looks like the coil would be near the end of the shaft (left of picture) unless the shaft has the coil in it??
  • Ryan313 said thank you

#25 Cvans OFFLINE

Cvans

    Tractorholic

  • Senior Member
  • -GTt Supporter-
  • Member No: 5412
  • 4,486 Thanks
  • 5,014 posts
  • Location: Eastern SD.

Posted December 24, 2012 - 12:22 AM

I'll see what I can find out for you tomorrow. Hang in there.
  • Ryan313 said thank you

#26 KennyP ONLINE

KennyP

    FORDoholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2253
  • 28,455 Thanks
  • 39,686 posts
  • Location: Collinsville, Oklahoma

Posted December 24, 2012 - 04:58 AM

Very interesting! This will be fun to watch!
  • Ryan313 said thank you

#27 Ryan313 OFFLINE

Ryan313

    PK Fanatic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 7087
  • 3,239 Thanks
  • 5,159 posts
  • Location: Wallkill, NY

Posted December 24, 2012 - 02:00 PM

Ok, I took off all of the parts I need. It came apart very easily, as a matter of fact! It took me a little over an hour to gets my parts off.

58A457FC-EB27-4AF4-B56B-47E205CEFB51-104



After I had it apart, I decided to go a little deeper into the front hubs. There is no coil in there!

C2ADE0B5-41B8-45C7-A82A-55F89C0FD8AA-104



There is not even a place where the wires come out!

928C8B7A-1607-4971-A2AE-F188E157C73C-104



I am really starting to go :loosing_it:



#28 Cvans OFFLINE

Cvans

    Tractorholic

  • Senior Member
  • -GTt Supporter-
  • Member No: 5412
  • 4,486 Thanks
  • 5,014 posts
  • Location: Eastern SD.

Posted December 24, 2012 - 02:10 PM

Ok I'll walk out in a little while and see if I can give you some help. Have to eat first and go from there.


  • Ryan313 said thank you

#29 KennyP ONLINE

KennyP

    FORDoholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2253
  • 28,455 Thanks
  • 39,686 posts
  • Location: Collinsville, Oklahoma

Posted December 24, 2012 - 02:27 PM

Where'd the wires go then?


  • Ryan313 said thank you

#30 Ryan313 OFFLINE

Ryan313

    PK Fanatic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 7087
  • 3,239 Thanks
  • 5,159 posts
  • Location: Wallkill, NY

Posted December 24, 2012 - 02:36 PM

I don't know where the wires went! I think they are there... Just for the sake of confusion.
