Jump to content

Nominations for Tractor of the Month
Garden Tractors and Parts on eBay



- - - - -

Homemade Sleeve Hitch For Mf10


  • Please log in to reply
18 replies to this topic

#1 johnboggs21 OFFLINE

johnboggs21

    Tractorholic

  • Senior Member
  • Member No: 4084
  • 18 Thanks
  • 184 posts
  • Location: MI

Posted April 28, 2012 - 09:34 PM

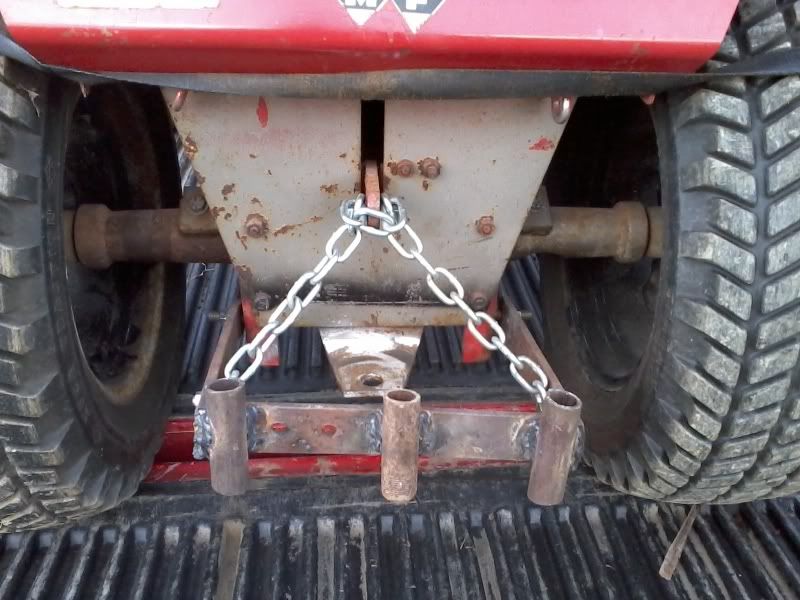

Started work on a homemade sleeve hitch for my newly aquired MF10. I think this tractor had one on it at one time, but has been removed. Im not sure how they worked originally, but I made up a linkage from the lever on the side of the tractor to the little arm on the back for a lift mechanism. I still have to find bolts the appropriate size and tighten everything up, but it should work. Not sure if Im going to stick with the chain or not. Heres a pic i snapped quick right before dark


Posted Image

#2 chris m OFFLINE

chris m

    Tractorholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 8148
  • 3,277 Thanks
  • 4,033 posts
  • Location: Charlestown,Rhode Island

Posted April 28, 2012 - 09:37 PM

Nothin wrong with that, I think the chain will work great. Good job. :thumbs:

#3 johnboggs21 OFFLINE

johnboggs21

    Tractorholic

  • Senior Member
  • Member No: 4084
  • 18 Thanks
  • 184 posts
  • Location: MI

Posted April 28, 2012 - 09:42 PM

the only reason i would ditch the chain is if i wanted to apply down pressure, but I doubt I could apply that much with this kind of setup. I wish I could find a picture of how their supposed to be setup stock.

#4 chris m OFFLINE

chris m

    Tractorholic

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 8148
  • 3,277 Thanks
  • 4,033 posts
  • Location: Charlestown,Rhode Island

Posted April 28, 2012 - 10:26 PM

I am not sure as far as the set up yet. I just got my MF12 two days ago. We do have a bunch of manuals and brochures in our manual section on this site. also there is a entire set-up on Ebay right now, they are calling it a 3 point set-up (but it is not) And there trying to get $300.00 for it lol. But it is a good picture of the parts.

#5 HowardsMF155 OFFLINE

HowardsMF155

    Tractorholic

  • Senior Member
  • Member No: 4243
  • 2,699 Thanks
  • 2,916 posts
  • Location: Central NC

Posted April 28, 2012 - 10:42 PM

This thread has several pics of my sleeve hitch on my MF12, which is very similar to your MF10.
http://gardentractor...__fromsearch__1
  • johnboggs21 said thank you

#6 johnboggs21 OFFLINE

johnboggs21

    Tractorholic

  • Senior Member
  • Member No: 4084
  • 18 Thanks
  • 184 posts
  • Location: MI

Posted April 28, 2012 - 10:47 PM

yea that guy on Ebay is off his rocker if he thinks hes gonna get 300 bucks out of that, I could buy my MF10 6 times over for that much money!

#7 johnboggs21 OFFLINE

johnboggs21

    Tractorholic

  • Senior Member
  • Member No: 4084
  • 18 Thanks
  • 184 posts
  • Location: MI

Posted April 28, 2012 - 10:59 PM

This thread has several pics of my sleeve hitch on my MF12, which is very similar to your MF10.
http://gardentractor...__fromsearch__1


interesting read. What lifts your sleeve hitch? I hooked mine to the tall lever on the left side of the tractor

#8 MH81 ONLINE

MH81

    Proud to be Deplorable

  • Staff Admin
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 802
  • 27,343 Thanks
  • 28,648 posts
  • Location: N. W. PA

Posted April 29, 2012 - 04:18 AM

John, found 3 different sets of plans in the manuals area. Hope one of them gives you the info you're looking for.
http://gardentractor...2-sleeve-hitch/
http://gardentractor...ketchup-type-2/
http://gardentractor...ketchup-type-1/
  • johnboggs21 said thank you

#9 JDBrian OFFLINE

JDBrian

    Super Moderator

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2507
  • 9,574 Thanks
  • 14,136 posts
  • Location: Hubley, Nova Scotia - Canada

Posted April 29, 2012 - 06:12 AM

That looks like it will do the job. You might want to drill a couple of holes and weld nuts on for the adjustment bolts. That will help keep the implements pulling straight.

#10 johnboggs21 OFFLINE

johnboggs21

    Tractorholic

  • Senior Member
  • Member No: 4084
  • 18 Thanks
  • 184 posts
  • Location: MI

Posted April 29, 2012 - 07:17 AM

MH81, thanks for the links. I browsed through the manuals section last night, but must have overlooked those.

Brian, I plan on adding in the adjustment bolts later on. I just wanted to make sure the lift mechanism would work the way I have it rigged.

#11 JDBrian OFFLINE

JDBrian

    Super Moderator

  • Super Moderator
  • Staff
  • -GTt Supporter-
  • Contributor
  • Member No: 2507
  • 9,574 Thanks
  • 14,136 posts
  • Location: Hubley, Nova Scotia - Canada

Posted April 29, 2012 - 07:24 AM

John, the chains are pulling from a different point (further from the rear of the tractor) then the lever arrangement on the stock hitch. This may reduce your lift height. If you added some quick links to the chains you could adjust the height of the hitch by shortening or lengthening them.

#12 johnboggs21 OFFLINE

johnboggs21

    Tractorholic

  • Senior Member
  • Member No: 4084
  • 18 Thanks
  • 184 posts
  • Location: MI

Posted April 29, 2012 - 07:28 AM

Maybe I could try drilling some holes a couple inches farther back and hooking the chain in there?

#13 Bud OFFLINE

Bud

    Tractorholic

  • Senior Member
  • Contributor
  • Member No: 650
  • 341 Thanks
  • 404 posts
  • Location: Montana

Posted April 29, 2012 - 07:41 AM

I made a hitch for mine also. You could maybe weld something, even a big nut on the center behind the sleeve hitch hole and run one chain straight down to it. May need a bigger chain and a cleeves (shakle) on the ends of the chain.

#14 johnboggs21 OFFLINE

johnboggs21

    Tractorholic

  • Senior Member
  • Member No: 4084
  • 18 Thanks
  • 184 posts
  • Location: MI

Posted April 29, 2012 - 07:52 AM

That would probably work pretty good. I definitly have some more refinement to do to it, but it looks like it should work they way I had pictured it once I get all the kinks worked out

#15 daytime dave OFFLINE

daytime dave

    Live long and prosper

  • Senior Member
  • -GTt Supporter-
  • Contributor
  • Member No: 531
  • 4,485 Thanks
  • 6,353 posts
  • Location: Upstate NY

Posted April 29, 2012 - 10:08 AM

That sure looks like it will work ok. Nice job.




Top
